BR-T 140 ℃ตัวป้องกันความร้อน AC พร้อมตัวป้องกันความร้อน PTC 17AM
การใช้งานตัวป้องกันความร้อน BR-T
ตัวป้องกันความร้อนซีรีส์ BR-T มีจุดเด่นสำหรับขนาดที่เล็ก ความไว ประสิทธิภาพการระบายอากาศที่สมบูรณ์แบบ ความแม่นยำ ส่วนใหญ่จะใช้กับมอเตอร์เศษส่วน 0.5hp หรือน้อยกว่า หม้อแปลง วงจรเรียงกระแส ชุดแบตเตอรี่ และเครื่องใช้ในครัวเรือนอื่นๆ
โครงสร้างตัวป้องกันความร้อน BR-T
BR series thermal protector is a temperature automatic response device and is temperature, current double protective equipment as well. When the heat generated by the increasing temperature from the protected appliances transmits to double metal element, and reaching the temperature value of scheduled movement, the double-metal element will move immediately so that the contact will be switched off and the circuit will be cut off. When the temperature decreases to the rated temperature value of reposition, bimetal element will return to its initial state, the moving contact will be closed and the circuit will be on.
ตัวป้องกันความร้อน BR-T อุณหภูมิเปิด:
50~150 มีค่าความคลาดเคลื่อน 5°C; เพิ่มขึ้นทีละ 5°C
พารามิเตอร์
การจัดหมวดหมู่ | แอล | W | H | ข้อสังเกต |
บีอาร์-ที XXX | 16 | 6.2 | 3 | เคสโลหะ, ปลอกฉนวน |
BR-T XXX เอช | 16.5 | 6.8 | 3.6 | เคสโลหะ, ปลอกฉนวน |
บีอาร์-เอส XXX | 16 | 6.5 | 3.4 | กล่องพลาสติก PBT |

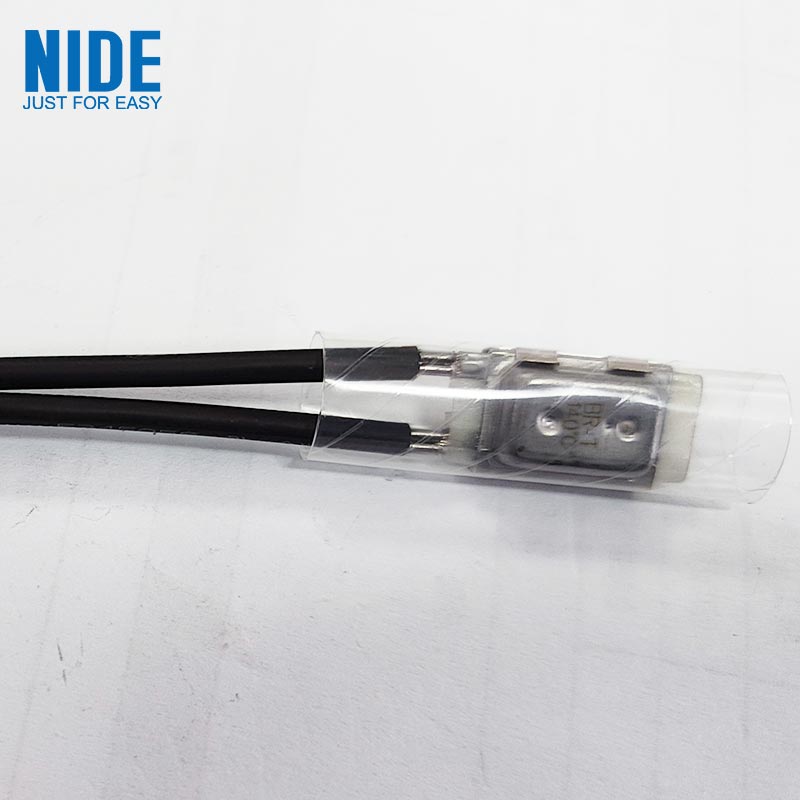

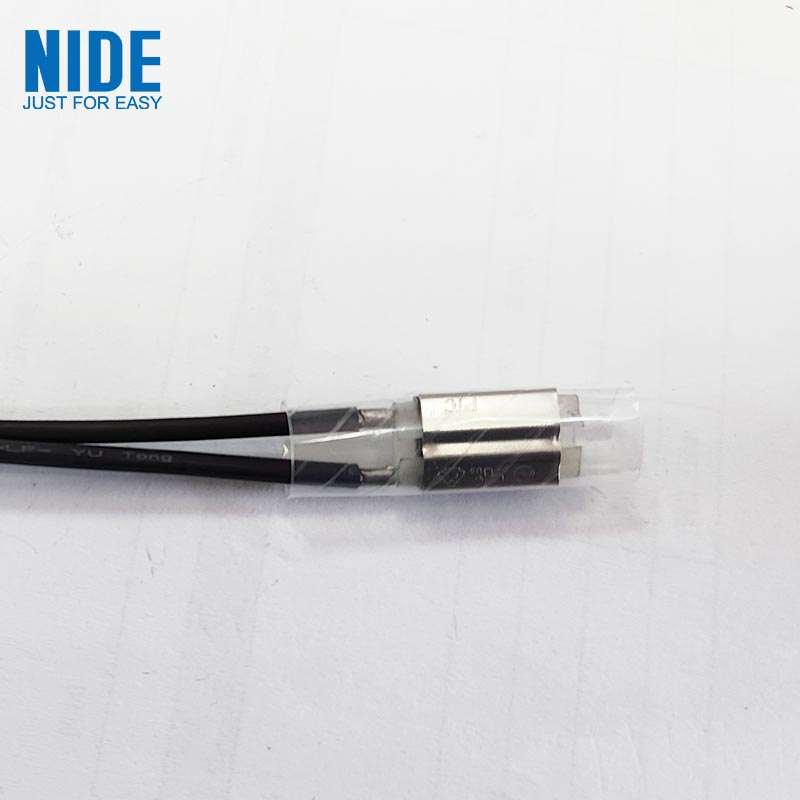

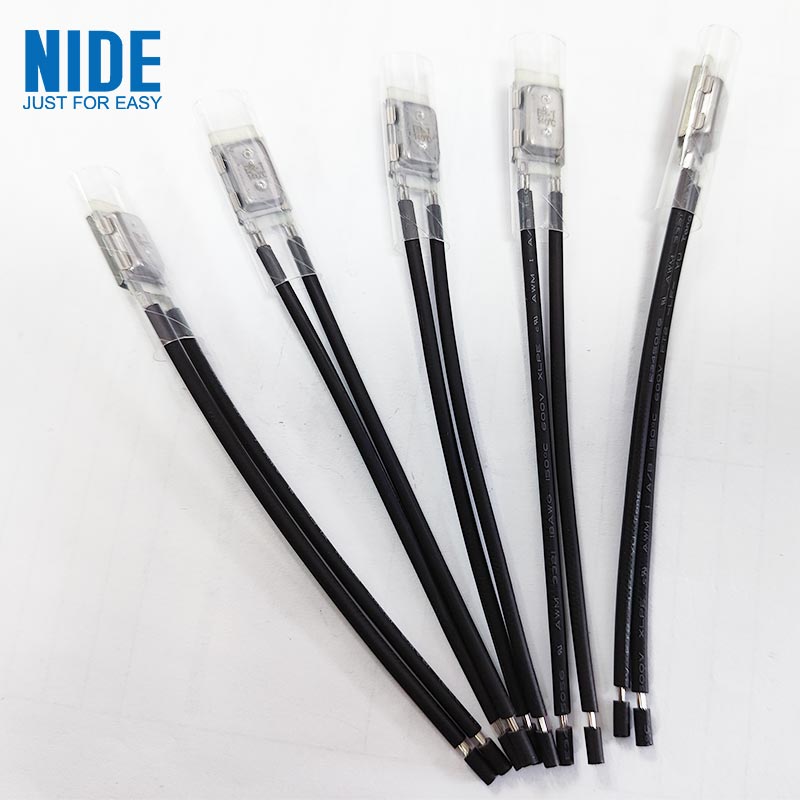

รูปภาพตัวป้องกันความร้อน
